# List required packages in a vector called load.lib.
load.lib <- c("tidyverse","questionr","Hmisc","esquisse","kableExtra")
install.lib <- load.lib[!load.lib %in% installed.packages()] # Examine packages which are not yet installed
for (lib in install.lib) install.packages(lib,dependencies=TRUE) # Install those if required
sapply(load.lib,require,character=TRUE) # Load all packages.
#Load data
setwd("/home/groups/3genquanti/SoMix/HIES for workshop")
edu<-readRDS("edu.rds")2 Survey data and univariate statistics
In this section, you will learn how to perform descriptive statistics on survey data based on representative population samples. We first focus in this section on the univariate description of variables, both numerical (quantitative) and categorical (qualitative).
To do this, we need four packages that have not yet been loaded (and that you may not have installed yet).
In the code below, we suggest a way to check whether these necessary packages are already installed on your R session, and to load them into the environment if the case they are not.
We are using the same dataset as in the previous chapter (edu.rds), which you can also load into RStudio.
2.1 Working with survey data
The Household Income and Expenditure Survey (HIES) data have been collected on a sample of households in Sri Lanka. This sample, thanks to the household selection procedures included in the survey, is representative of the entire population of Sri Lanka.
Keep in mind that the selection is based on a complete enumeration of households and a random selection of households included in the sample (in fact, it’s a little more complex, but that’s the general idea).
Why use a sample instead of surveying the entire population? Sampling allows the collection of high-quality, representative data at lower cost and in less time, and all public and private statistical institutes use this type of survey method.
Generally, sample data include a weight variable. These weights ensure the representativeness of the sample for the entire population, that is, in our case, of individuals living in Sri Lanka at the time of the survey. To put it simply, in the most common case, the weights correct biases in data collection because not all selected respondents were actually surveyed, and the weight corrects for these biases.
These types of data are very common in the social sciences (and the DCS conducts several sample-based surveys, such as the Time Use Survey, the Labor Force Survey, etc.), so it is important to know how to handle them.
Thus, all statistical operations performed on HIES files must take this weighting into account. For example, in the previous section we calculated the average age of respondents to the education module. Since we did not use a weight variable, we simply calculated the mean among the respondents. If we had taken weighting into account, we would have inferred the average age of children between 5 and 19 years old for the entire population.
In our HIES files, the correct variable weight variable is finalweight_25per (this is a specific weight variable to this sample because we are working with a 25% random sample of the survey sample, which is itself a random sample of the entire population).
2.2 Describing a numerical variable
2.2.1 Summarizing variables based on a few statistics
In R, we can easily summarize a numerical variable using a few statistical indicators:
Minimum
Mean
Median
Maximum
The minimum and maximum give an idea of the range of values taken by the variable, while the mean and median are measures of central tendency.
It is often useful to estimate the median in addition to the mean when studying a numerical variable. Indeed, the mean is sensitive to “extreme” values in a distribution.
The median is the value that separates the lower half from the upper half of a statistical distribution (50% of the population has a lower value, 50% has a higher value). When the mean and median differ greatly, it indicates that the distribution of the variable is not evenly spread around the mean.
Typically, when studying income, the mean is often much higher than the median, while the median is a more stable measure of central tendency. This is because only a few individuals have very high incomes, which tends to increase the mean.
To obtain these statistics for the variable distance which indicates the distance from home to school for children:
edu |>
summarise(
min = min(distance, na.rm = TRUE),
mean = wtd.mean(distance,weights=finalweight_25per,na.rm = TRUE),
median = wtd.quantile(distance,probs=.5,weights=finalweight_25per,na.rm = TRUE),
max = max(distance, na.rm = TRUE),
n_na = sum(is.na(distance))
)Notice that we use finalweight_25per to calculate the mean and the median, but not to calculate the minimum and maximum. Here, the minimum and maximum suggest that some children live very close to their school, but for at least one child, the school is pretty far from home!
The mean is higher than the median, indicating that a few unusually high distance values are stretching the upper tail of the distribution, resulting in a right-skewed distribution.
We also added the number of NA cases in this variables, i.e. the number of missing variables. In fact, here this corresponds to children who actually do not attend school.
We produced such a nice output that we would like to display it as a table, but copying and pasting it from the console doesn’t look very nice…
No worries — there are plenty of packages in R to create beautiful table outputs. Here, we propose using kableExtra :
summary<-edu |>
summarise(
min = min(distance, na.rm = TRUE),
mean = wtd.mean(distance,weights=finalweight_25per,na.rm = TRUE),
median = wtd.quantile(distance,probs=.5,weights=finalweight_25per,na.rm = TRUE),
max = max(distance, na.rm = TRUE),
n_na = sum(is.na(distance))
)
summary |> kbl() |> kable_classic(full_width = F)
#Or to have a lower number of digits for the mean:
summary |> kbl(digits=2) |> kable_classic(full_width = F)The function kbl transforms the summary object into a table in LaTeX/HTML format, which is displayed in the Viewer (bottom-right panel), and the function kable_classic is one of the default formatting options I chose.
These tables can be customized endlessly (including adding titles, captions, etc.). The main advantage is that they can be copied and pasted cleanly into your report, article, or thesis.
2.2.2 Summarizing a quantitative variable with a graph
All of this looks nice and seems to suggest that distance is a skewed variable with a distribution stretched to the right. Can we visualize the distribution of this variable?

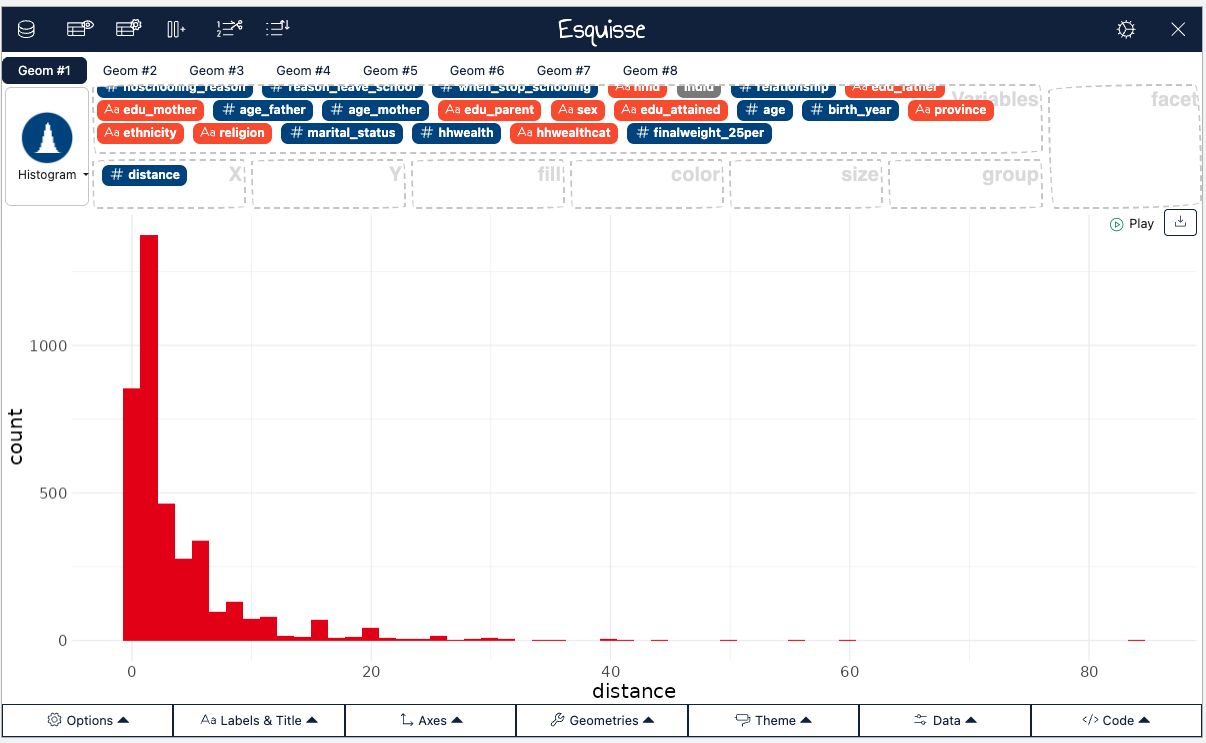

We can use the esquisse package, which provides a point-and-click solution for creating plots. You need to run the following line (be a little patient while the page loads). This avoids having to write the code yourself to create the plot using the ggplot2 package.
esquisser(edu)This should load an interface with the different variables from the dataset at the top, which you will need to drag into the corresponding boxes.
By dragging the distance variable into the X box, a histogram is created automatically. You can modify this representation, for example, by choosing a density plot instead. The entire graph is customizable using the options below.
Finally, you can save your plot and also copy the code that generates the same plot without having to reopen Esquisse!
2.3 Describing a categorical variable
Describing a numerical variable is nice, but we often also have categorical variables. How can we describe them?
The function freqtable from the questionr package allows you to get the weighted counts of a categorical variable, and freq calculates the corresponding percentages (%val corresponds to the percentages of non-NA categories).
Note that it is always possible to remove the part weights=finalweight_25per to get unweighted counts. This is useful as we always want to have weighted percentages, but the unweighted number of individuals on which this percentage has been calculated: indeed, statistics tends to be less robust when they are calculated on small subsamples, so it is always interesting to keep in mind the number of respondents available in our (sub)sample.
Here, we are interested in the variable r2_school_education, which corresponds to the respondents’ school status.
edu |> freqtable(r2_school_education,weights=finalweight_25per) |> freq()
edu |> freqtable(r2_school_education) |> freq()
edu |> freqtable(r2_school_education,weights=finalweight_25per) |> freq() |> select(-n)2.4 Recoding a categorical variable
The categories of r2_school_education are here coded as 1, 2, and 3. This is because when getting the from the Lanka data, we got CSV files without any data labels so we need to recode them ourselves based on the questionnaire of the survey.

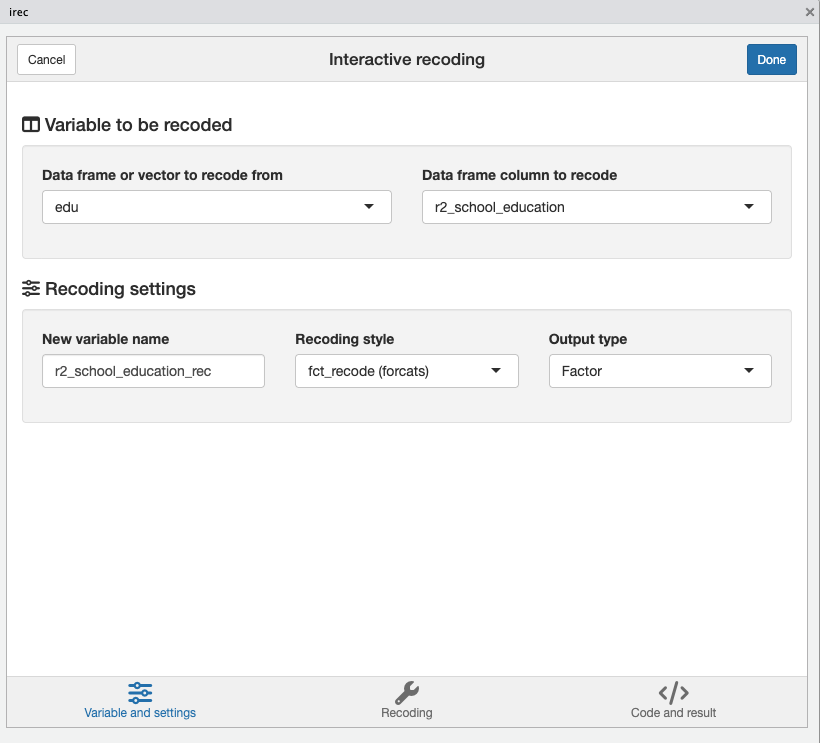

Luckily, this task can be done very easily by using the irec() interface (from the questionr package created by Julien Barnier). Type it in the console and the following window will open to recode a new variable with explicit levels (in the R lingo, these are factor levels).
irec()

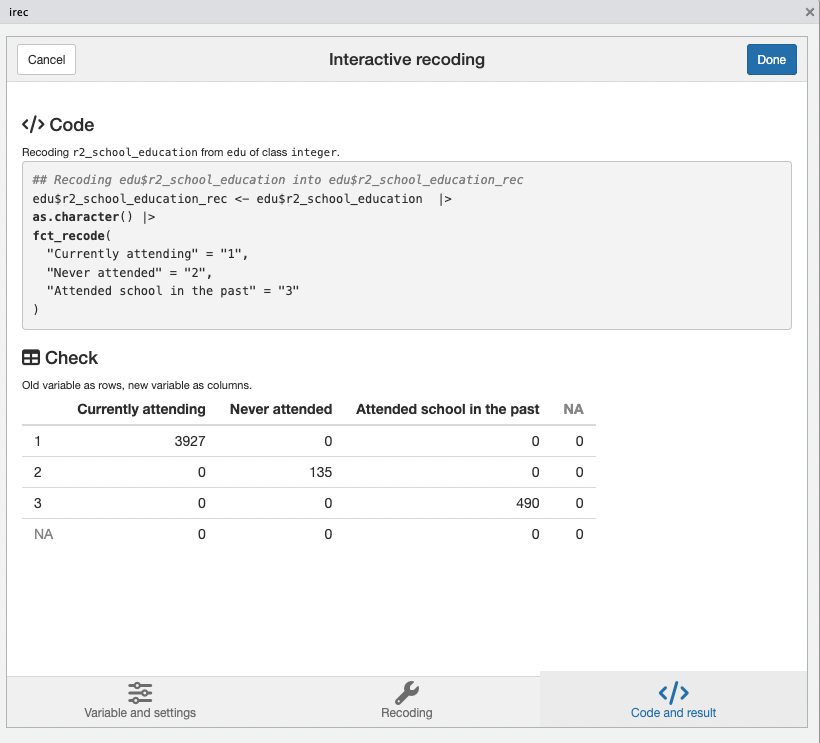

The last panel shows you the R code to recode the variable. When clicking on ‘Done’, this code is sent to the Console. We strongly advise you to copy-paste this code into your script to keep track of all your recoding steps! This way, you will be able to re-run all your analyses at once whenever you want just by clicking on the ‘Run’ button for your whole code.
2.5 Recoding a numerical variable to a categorical variable
It can be useful to analyze distance to school not as a numerical variable but as a categorical variable (for example, what proportion of students have a school less than 1 km of their home away?).
Recoding a quantitative variable into a qualitative variable is straightforward. In R, we can use another add-in from the questionr package: icut:

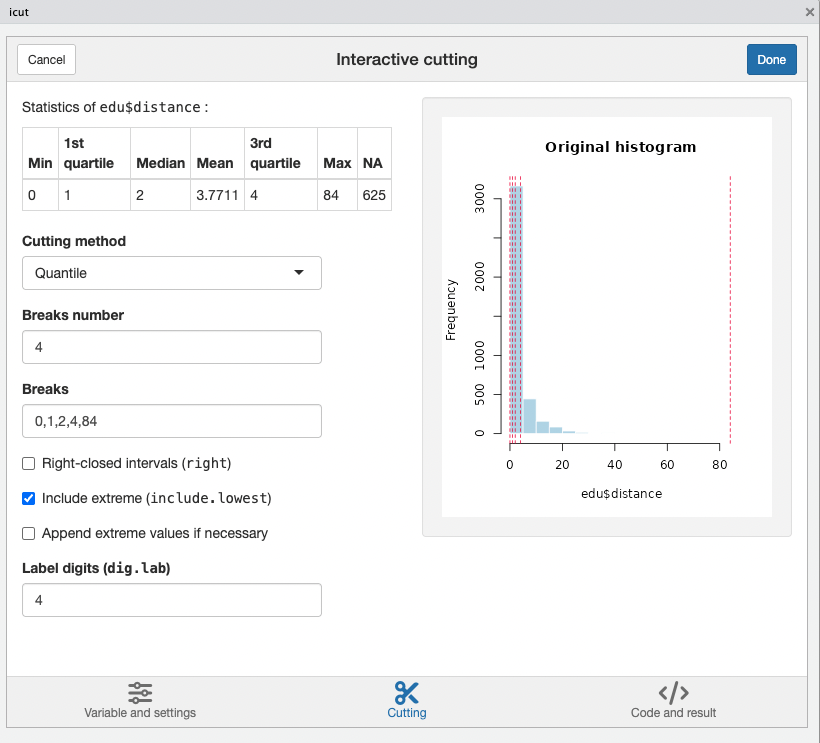

icut()You can then choose the dataset in which you want to recode a variable, select the variable to recode, and specify the name of the recoded variable (by default, the old variable name with “_rec” added). This add-in relies on R’s cut() function.
Different recoding options are offered:
Manually (if you have identified key values, or know key thresholds for a variable, for example a poverty level),
Using a reclassification algorithm (Jenks, which geographers often use, or other algorithms),
Using quantiles,
Using equal-width intervals in the distribution.
Here, we choose to recode the variable into quartiles. The newly created variable corresponds to 4 categories, each roughly representing 25% of the unweighted respondents. However, this division is not always exact, especially when many individuals share the same value — in this case, the number of kilometers.

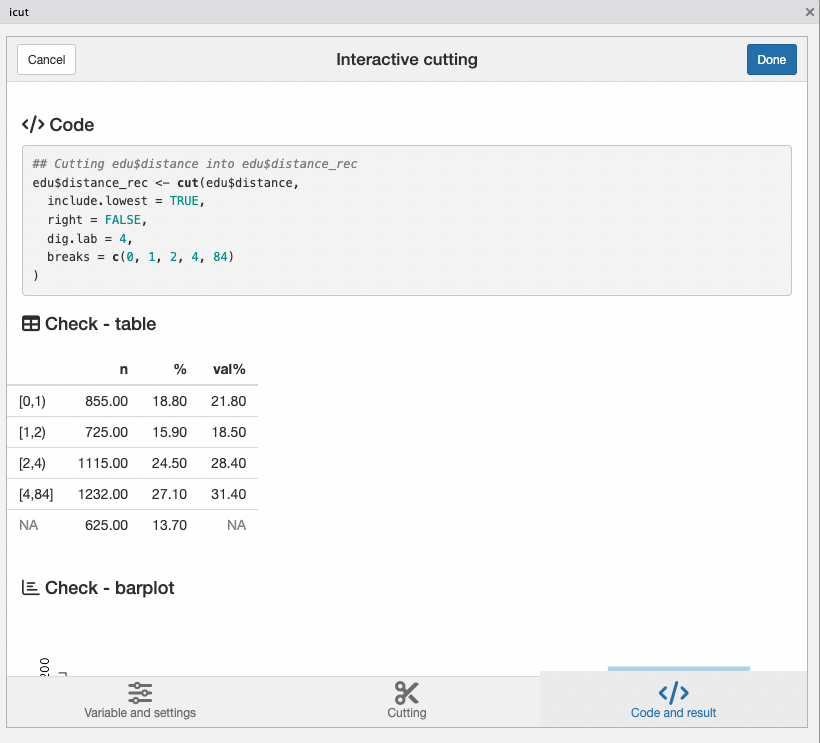

You can then click ‘Done’. Note that the variable has not yet been created, but in the console, the code to create it is provided. You just need to copy and paste it into your script and run it (you can also modify it directly yourself if you want):
## Cutting edu$distance into edu$distance_rec
edu$distance_rec <- cut(edu$distance,
include.lowest = TRUE,
right = FALSE,
dig.lab = 4,
breaks = c(0, 1, 2, 4, 84)
)
